What does this term mean? Railcars are put into Bad Order Status during the transportation cycle when the car requires any repair to running gear or safety appliances. These running gear parts and safety appliances are wheels, trucks, brakes, air hoses, draft gear, couplers, ladders, and platforms.

Bad order for coupler repair is one of the more common reasons when checking on bad orders. The bad order status for couplers may mean the complete change out of the coupler or maybe just the coupler knuckle, which is the part that moves in the center of the coupler and looks like a large steel hook. Couplers receive some of the hardest wear and tear on a railcar. This is due to the action of cars hitting each other during the process of blocking cars, moving them within plant locations, and the pressure put on the couplers during the act of pulling a train.


The coupler pictured here is what is called a "Single Shelf Coupler." A single shelf coupler is one that only has protection on the underside of the coupler to ensure that cars do not come uncoupled during the movement of a train. The single shelf coupler is the most common type of coupler in use today and will be on cars that do not move any hazardous materials.


All railcars that move hazardous materials must be equipped with what is called a "Double Shelf Coupler." A double shelf coupler has protection above and below the coupler knuckle which limits the movement of the coupler in either direction. This type of coupler is more time consuming to change as railroads may not always carry the different types of double shelf couplers and will have to order them from a supplier, which may cause a delay of a day or two in making the repair.

A second type of running gear failure could be what is called "Draft Gear." This is a part that is hidden behind the coupler and acts as a shock absorber for the coupler as cars are being blocked for movement.

Due to where this is located, the change out of a draft gear may also take longer than other types of repairs. The railroads may have these in stock at most repair tracks, however, as with double shelf couplers, there are many types of draft gear and the railroads may have to order the specific type required after they have removed it from the railcar, making the time for the repair longer than expected.

Wheels need to be replaced when one of two things happens. The surface face of the wheel develops a flat spot or the flange on the inside of the wheel no longer meets width requirements established by the AAR. In most cases, these problems only happen on one wheel at a time. As the wheels are permanently attached to the axles, both are changed out at the same time. This is a type of repair that is very common, is often repaired in a short amount of time, and the cars placed back into service.

Other types of running gear that are often Bad Ordered repairs are yokes, air brakes, truck assemblies, springs, side frames, and brake shoes. These are all very common items that need to be replaced during the movement of railcars and should be repaired within a 48-hour time period.

Railroads can repair the running gear on all cars and can repair body damage to all cars except tank cars. Tank car body damage must move to a home shop for repair as railroad shops do not have the certification to do work on a tank structure.

When cars are Bad Ordered by railroads, how much time should one expect that the cars will be out of service? Major yards, such as East St. Louis, Chicago, Atlanta, Houston, New Orleans, and Bakersfield can require longer repair times. Expect up to 48 hours of additional time in these larger terminals due to the large volume of repair work that is done.

Some rules of thumb for different types of Bad Orders are:

  • Bad Order for safety appliances, springs, and wheels should be 48 to 72 hours from the time they went Bad Order to the time the car is released and ready to move forward.
  • Bad Orders for trucks, side frames, draft gears, and couplers should be 72 to 98 hours, as the shops may not have the correct part for all types of cars and they would have to be ordered from a supplier.
  • Bad Orders for wheel and bearing inspections, after a derailment, should be 48 hours, unless there are repairs that need to be accomplished.



Image 2 (2)

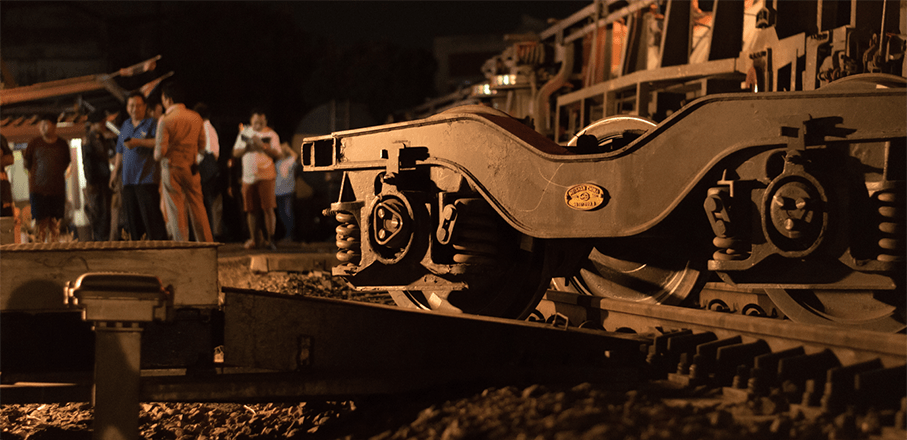

Derailments can be as simple as when the wheels come off the rail and rest on the ties, or as serious as when railcars have been involved in an accident.

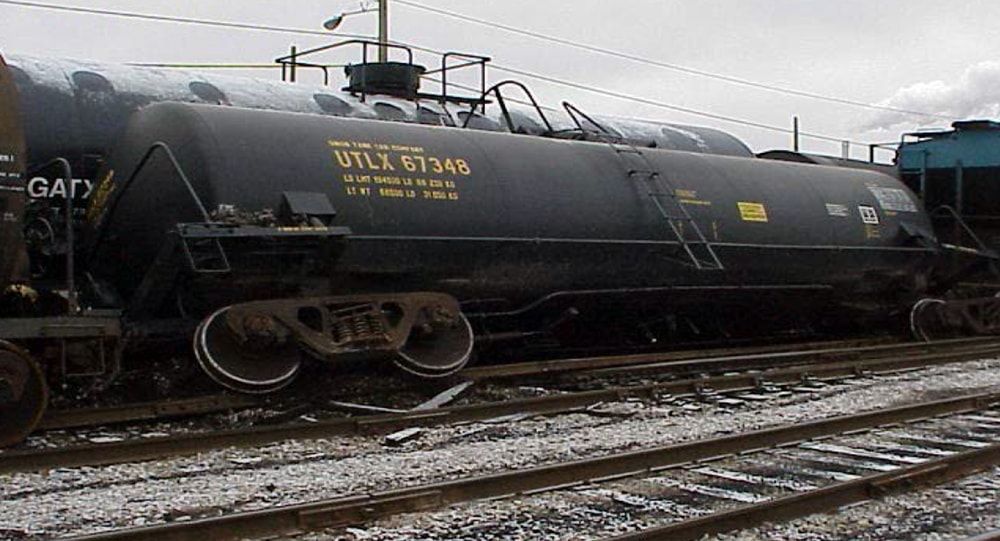

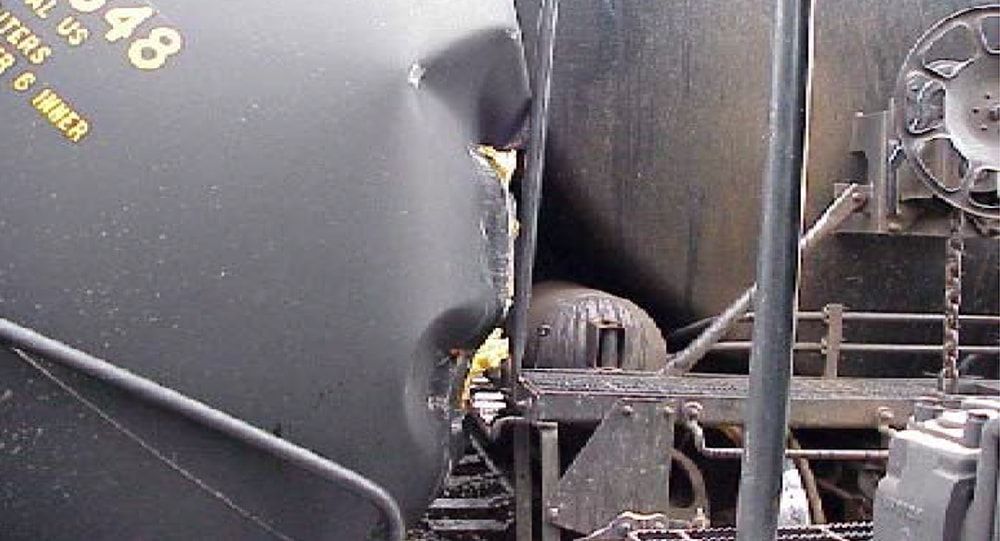

The following pictures show various derailments. The first two pictures show a derailment that would be classified as minor in nature. The cars have come off the rail and one car resting on the other; however, neither car received damage that would cause the cars to be delayed. They can be put back on the rail, and after inspection will move on to the customer for unloading prior to the railcar being moved to a non-railroad shop for inspection and possibly repair to the cars.

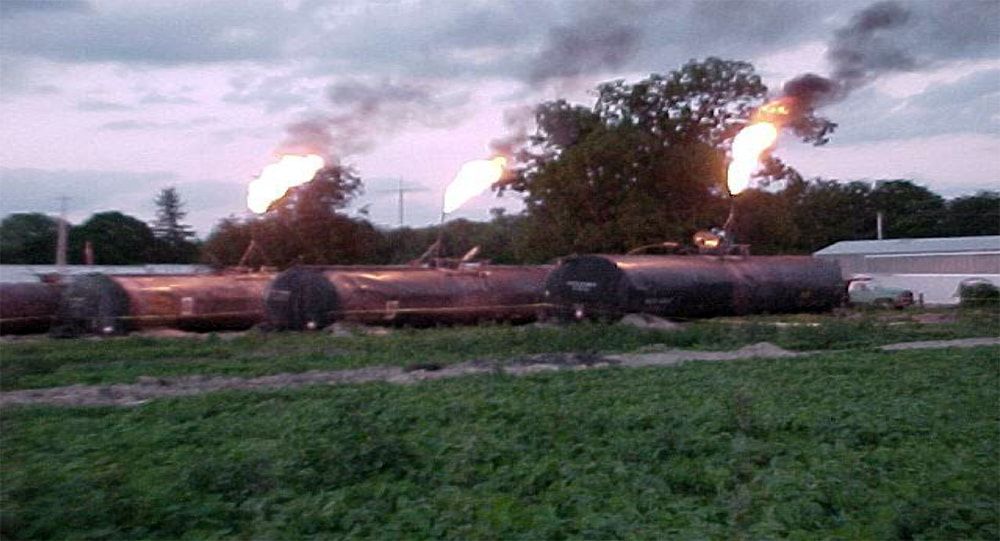

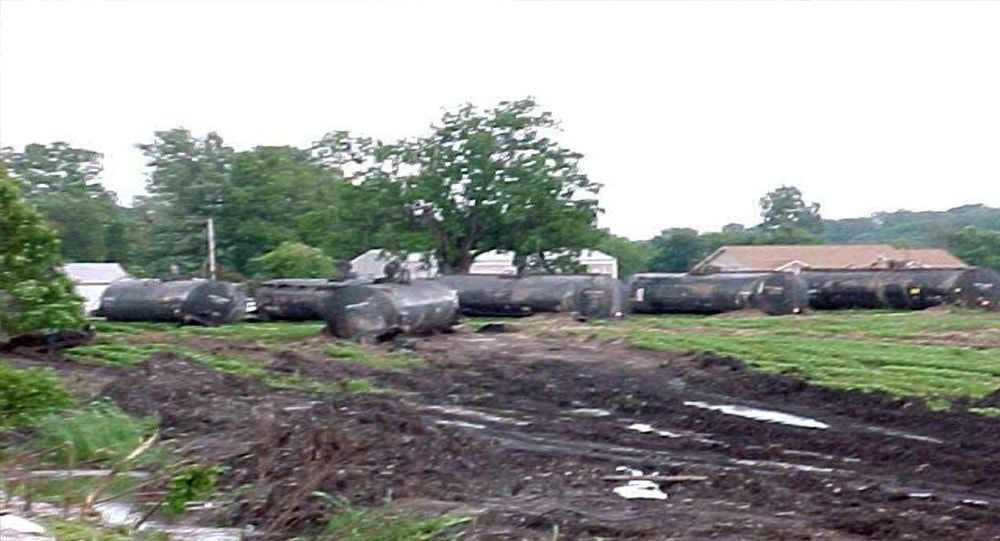

As can be seen below, the cars have been scattered over the rack and could cause problems for homeowners in the area. Major derailments such as these have deep impacts on railroad customers.

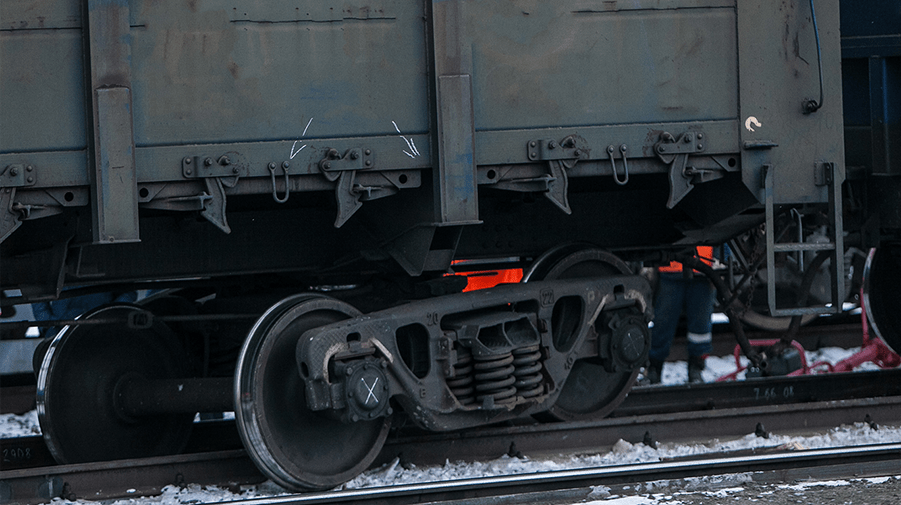

After derailments of a minor nature, such as the wheels came off the rail, railcars are inspected for bearing and wheel damage. When cars have been re-railed, they must move to the railroad repair shop for inspection and release before they can continue to move.

Railroads can repair the running gear on all cars and can repair body damage to all cars except tank cars. Tank car body damage must move to a home shop for repairs, as the railroad shops do not have the certification to do any work on the tank structure.
